COOL-FIT PE Plus Electric Actuated Butterfly valve Type 145, insulated
Download datasheet
COOL-FIT PE Plus Electric Actuated Butterfly valve Type 145, insulated
138567214 - EPDM, d 110, DN 100, SDR 11, Cv-value 6500
-
+
Code
Description
d
DN
SDR
Cv-value
(mm)
(mm)
(l⁄min)
Additional information
D
310
mm
D1
188
mm
D2
168
mm
L
552
mm
L1
72
mm
L2
179
mm
L3
122
mm
H
460
mm
H1
104
mm
H2
167
mm
H3
190
mm
z
696
mm
z1
320
mm
z2
56
mm
closest inch
4
inch
Model:
- ABS with spigot PE100 SDR11, metric
- Voltage 100-230V, 50-60Hz
- Factory set control range 90°<)
- Basic position A-C opened, activated position B-C opened, see flow scheme
- Including valve, flange adaptors, and insulation half shells
- Separate Fittings type A needed for joining
Downloads
Asset type
All
19 results
Name
Valve Automation Center Flyer EN
[ 2 MB / PDF ]
Download
Axle extension for Butterfly Valve
[ 1 MB / PDF ]
Download
Butterfly Valves Overview Brochure
[ 1 MB / PDF ]
Download
DIBt Zulassung - Armaturen aus Polypropylen (PP-H)
[ 7 MB / PDF ]
Download
DIBt Zulassung - Armaturen aus Polyvinylchlorid (PVC-U)
[ 13 MB / PDF ]
Download
DIBt Zulassung - Armaturen aus Polyvinylidenfluorid (PVDF)
[ 10 MB / PDF ]
Download

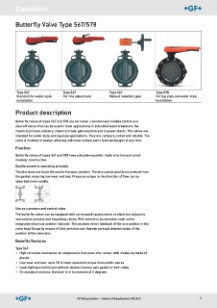

Datasheet Butterfly Valve Type 567/578 (EN)
[ 12 MB / PDF ]
Download

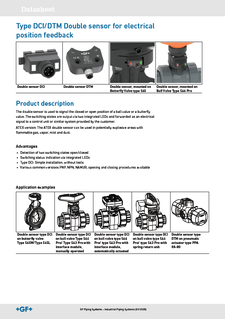

Datasheet Double Sensor for electrical position feedback (EN)
