Lug-Style, end installation butterfly valve metal type 038
With hand lever Flange standard metric - PN10 Disc: alu-bronze
Download datasheet
Lug-Style, end installation butterfly valve metal type 038
199038400 - Liner: EPDM, d 63, DN 50, Size 2, PN 16, kv-value (Δp=1 bar) 3140
-
+
Code
Description
d
DN
Size
PN
kv-value (Δp=1 bar)
(mm)
(mm)
(inch)
(bar)
(l⁄min)
Additional information
H
298
mm
H1
63
mm
H2
140
mm
H3
95
mm
L
43
mm
L1
45
mm
L2
220
mm
Model:
- Lug Style
- Body GGG40 (A 395 / A395 M-99, EN-JIS 1020 EN1563) Rilsan® coating
- Installation length: EN 558 row 20
- Interface according to DIN EN ISO 5211
- Pressure range: 16 bar (DN 50-300)
- Axis DN50 - DN300: Single-piece axis with square profile, material stainless steel DIN Norm 1.4021
- Flange connection: DN50 - DN300: PN6, PN10, ANSI 125/150 Lbs., BS 10-D/E
Option:
- Electric and pneumatic actuator on request
- Other liner material on request
Downloads
Asset type
All
Valve Automation Center Flyer EN
[ 2 MB / PDF ]
Download
Absperrklappen Typ 038 & 039 DVGW-Baumusterprüfzertifikat
[ 1 MB / PDF ]
Download
Butterfly Valves Overview Brochure
[ 1 MB / PDF ]
Download
Datasheet Butterfly Valve Type 038/039 (EN)
[ 2 MB / PDF ]
Download
Datasheet Butterfly Valve Type 038E/039E (EN)
[ 2 MB / PDF ]
Download
Datasheet Butterfly Valve Type 038P/039P (EN)
[ 1 MB / PDF ]
Download
Industrial valves, manually operated - Important product information
[ 1 MB / PDF ]
Download

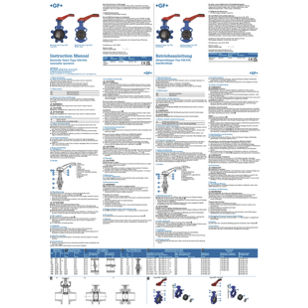

Instruction Manual Butterfly Valve Type 038 / Type 039, manually operated
